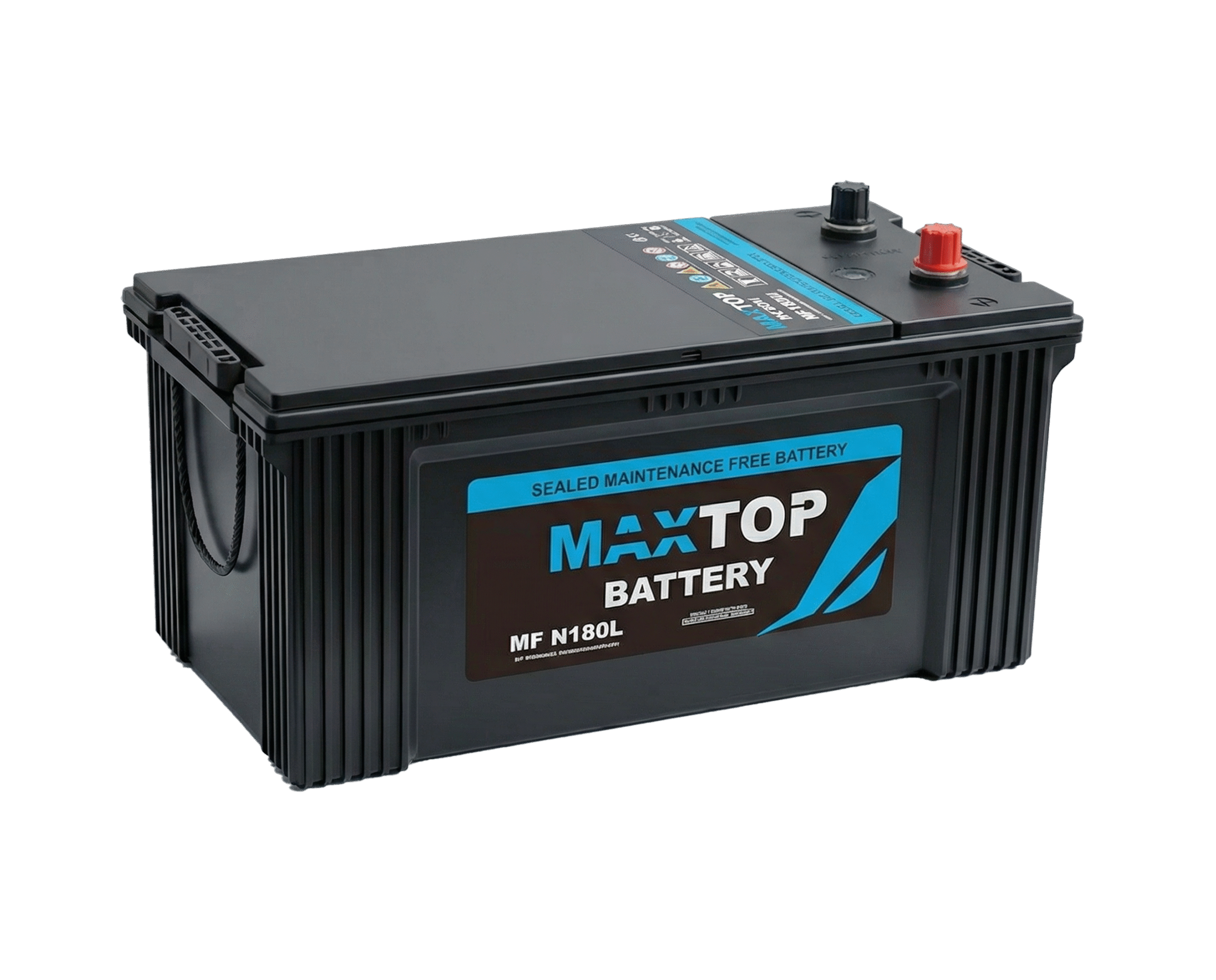

MAXTOP MF N180L (JAPAN JIS STANDARDS 12V 180AH TRUCK BATTERY)

MAXTOP MF N180L battery refers to a high-capacity JIS (Japanese Industrial Standard) lead-acid battery. It typically offers 12V with a capacity of approximately 180Ah (often falling within the JIS “H52” casing size). Designed for the largest commercial vehicles manufactured in Japan and Korea, like Hino, Isuzu: Giga Series (Heavy-duty tractors and rigid trucks), Mitsubishi Fuso, UD Trucks (Nissan Diesel), etc.

MAIN INDEX FOR  MF N180L (JAPAN JIS STANDARDS)

ITEM# MF N180L (JAPAN JIS STANDARDS)
Capacity 180Ah (20hr)
Dimensions(mm) 515mm (L) x 265mm (W) x 239mm (H)
Warranty 36 months warranty
Voltage 12V
RC (Reserve Capacity) 378min
CCA (Cold Cranking Amps ) 1100A
Main vehicle types for N180L 1. Heavy-Duty Prime Movers & Dump Trucks (Asian)
Designed for the largest commercial vehicles manufactured in Japan and Korea.Hino: Older generations of the 700 Series and Profia (Super Dolphin) heavy trucks.
Isuzu: Giga Series (Heavy-duty tractors and rigid trucks).
Mitsubishi Fuso: The Great (older heavy series) and specific Super Great models.
UD Trucks (Nissan Diesel): Big Thumb and older Quon models.
Logging Trucks & Concrete Mixers: Heavy specialized versions of the above chassis.2. Heavy Construction & Mining Equipment
Standard fitment for large-displacement diesel machinery requiring high cranking amps.Large Excavators: Komatsu (PC300, PC400 series), Hitachi (EX/ZX 300+ series), Kobelco.
Bulldozers: Komatsu D155, D375 (often requires 2 batteries in series for 24V).
Wheel Loaders: Large mining loaders from Kawasaki or TCM.
Cranes: Tadano and Kato rough terrain cranes and truck cranes.

something to know

IMPORTANT TERMS ABOUT BATTERIES

For more details, pls contact us via email: sales@maxtopbatteries.com or 7*24 whatsapp: +86 183 6429 4132, thx.

What is Maintenance Free (MF) battery?

  • Maintenance Free batteries come sealed for life from the factory, and do not require maintenance of the electrolyte levels. The most significant benefit of the sealed design is that no service attention is required, other than ensuring the battery is kept clean and fully charged

What is JIS type battery?

JIS (Japanese Industrial Standard)
  • Mainly Applicable Vehicles: Japanese cars (Toyota, Honda, Nissan), Korean cars (Hyundai, Kia), and most Asian brand vehicles.

  • Appearance Features (Most obvious difference): Raised Terminals. The positive and negative terminals of JIS batteries protrude clearly above the flat top surface of the battery.

  • Naming Convention Examples: 55D23L, N70, NX120-7, etc. The letters represent width and height, while the numbers represent length or performance level.

What is DIN type battery?

DIN (Deutsches Institut für Normung) – European Standard
    • Mainly Applicable Vehicles: German cars (VW, Mercedes, BMW, Audi), European cars (Peugeot, Volvo), and an increasing number of American and globalized vehicle models.

    • Appearance Features (Most obvious difference): Recessed Terminals. The positive and negative terminals of DIN batteries are “hidden” in grooves on the top of the battery, sitting flush with the battery lid (designed to adapt to the compact hood space of European cars and prevent terminal short-circuiting). In addition, DIN batteries usually have a hold-down lip at the bottom for chassis clamp mounting.

    • Naming Convention Examples: DIN70, MF57412, L3, H6, etc.

Internal Structure of the MAXTOP Battery

MAXTOP batteries use high‑performance grids with 4B alloy additives for better conductivity and lower self‑discharge and water loss. Two‑side pasting improves the plates’ corrosion resistance and initial capacity. The imported pocket PE separator prevents short circuits caused by active‑material drop‑off while lowering internal resistance and boosting cranking power. Advanced inter‑cell welding keeps connection resistance low. Acid‑proof material and a burst‑separation patch effectively isolate external sparks. The labyrinth‑style reflux cover lets electrolyte flow back to reduce water loss, and the reinforced case and cover add strength and durability.

MAXTOP BATTERIES HI-PERFORMANCE GRID & OPTIMIZED PLATES

MAXTOP high‑performance grids deliver up to 32% more durability under extreme conditions than other grid designs, and up to 35% better conductivity than other grid technologies. A car battery built with MAXTOP high‑performance grids is stronger, more durable, and works with better conductivity — ensuring reliable battery performance.

Cell Layout, Terminal Type & Hold-Down Info

MAXTOP offers multiple cell layouts (0, 1, 3, 4, 5) to match the positive and negative terminal positions of different vehicle models. Terminals are available in two types — STD standard (φ17.6 and φ16) and SM small (φ12.8 and φ11.1), both 17.0 mm in height — to suit different wiring requirements. Hold-down options from B1 to B5 ensure secure, vibration-resistant installation.

Battery Layout, Terminal Type & Hold-Down

MAXTOP offers a wide range of BCI layouts (8, 10, 11, 17, 18, 19, 24, 26, 27), so terminal positions can be adapted to different vehicle models. Terminal options include TM reinforced terminals, STD standard terminals and SIDE side terminals to suit various wiring needs. Hold-down options from B1 to B5 ensure a secure, vibration-resistant installation.
