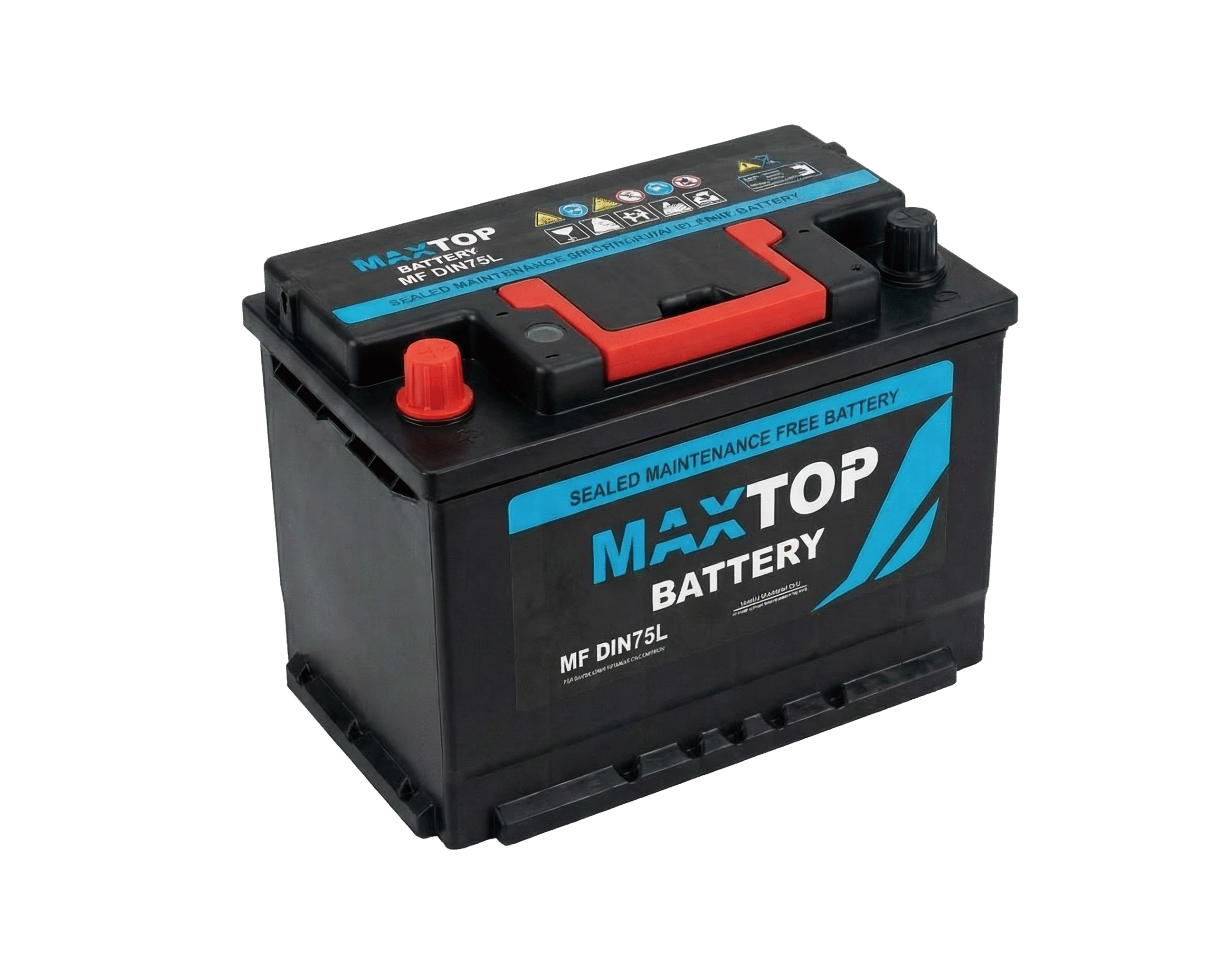

MAXTOP MF DIN75L (GERMAN DIN STANDARDS 12V 75AH AUTO BATTERY)
The MF DIN75 battery (Maintenance-Free, German DIN Standard, 12V, approx. 75Ah) is one of the most versatile and widely used battery sizes for European vehicles. It corresponds to the L3 or H6 group size. Typical Dimensions: 279mm (Length) x 175mm (Width) x 190mm (Height).
⚠️ Critical Technical Notes:
Height Difference (175mm vs 190mm):
The standard DIN75 is 190mm tall. However, some vehicles (especially Ford and Opel) require a “Low-Profile” version which is only 175mm tall (often called DIN72 or DIN75 Low / LB3). If you put a 190mm high battery in a Ford, the bonnet (hood) might not close. Check the height of your old battery.
Start-Stop Technology:
The list above refers to standard MF (Wet Lead-Acid) batteries. If your car (e.g., a 2016 VW Golf or Audi A3) has Auto Start-Stop, you must use an EFB DIN75 or AGM DIN70/80 battery. Standard MF batteries will fail quickly in Start-Stop vehicles
MAIN INDEX FOR MF DIN75L (GERMAN DIN STANDARDS)
| ITEM# | MF DIN75L (GERMAN DIN STANDARDS) |
| Capacity | 75Ah (20hr) |
| Dimensions(mm) | 279mm (L) x 175mm (W) x 190mm (H) |
| Warranty | 36 months warranty |
| Voltage | 12V |
| RC (Reserve Capacity) | 139min |
| CCA (Cold Cranking Amps ) | 600A |
| Main vehicle types for DIN75L | 1. European Mid-Sized Sedans & Wagons (Primary Market) This size is the standard factory fitment for millions of European family cars and compact executives (especially Petrol models and smaller Diesels). Volkswagen: 2. Compact & Mid-Sized SUVs 3. French & Other European Brands 4. American & Global Vehicles (Euro-Platform) |
something to know
IMPORTANT TERMS ABOUT BATTERIES
For more details, pls contact us via email: sales@maxtopbatteries.com or 7*24 whatsapp: +86 183 6429 4132, thx.
What is Maintenance Free (MF) battery?
Maintenance Free batteries come sealed for life from the factory, and do not require maintenance of the electrolyte levels. The most significant benefit of the sealed design is that no service attention is required, other than ensuring the battery is kept clean and fully charged
What is JIS type battery?
JIS (Japanese Industrial Standard)
Mainly Applicable Vehicles: Japanese cars (Toyota, Honda, Nissan), Korean cars (Hyundai, Kia), and most Asian brand vehicles.
Appearance Features (Most obvious difference): Raised Terminals. The positive and negative terminals of JIS batteries protrude clearly above the flat top surface of the battery.
Naming Convention Examples: 55D23L, N70, NX120-7, etc. The letters represent width and height, while the numbers represent length or performance level.
What is DIN type battery?
DIN (Deutsches Institut für Normung) – European Standard
Mainly Applicable Vehicles: German cars (VW, Mercedes, BMW, Audi), European cars (Peugeot, Volvo), and an increasing number of American and globalized vehicle models.
Appearance Features (Most obvious difference): Recessed Terminals. The positive and negative terminals of DIN batteries are “hidden” in grooves on the top of the battery, sitting flush with the battery lid (designed to adapt to the compact hood space of European cars and prevent terminal short-circuiting). In addition, DIN batteries usually have a hold-down lip at the bottom for chassis clamp mounting.
Naming Convention Examples: DIN70, MF57412, L3, H6, etc.
Internal Structure of the MAXTOP Battery
MAXTOP batteries use high‑performance grids with 4B alloy additives for better conductivity and lower self‑discharge and water loss. Two‑side pasting improves the plates’ corrosion resistance and initial capacity. The imported pocket PE separator prevents short circuits caused by active‑material drop‑off while lowering internal resistance and boosting cranking power. Advanced inter‑cell welding keeps connection resistance low. Acid‑proof material and a burst‑separation patch effectively isolate external sparks. The labyrinth‑style reflux cover lets electrolyte flow back to reduce water loss, and the reinforced case and cover add strength and durability.
MAXTOP BATTERIES HI-PERFORMANCE GRID & OPTIMIZED PLATES
MAXTOP high‑performance grids deliver up to 32% more durability under extreme conditions than other grid designs, and up to 35% better conductivity than other grid technologies. A car battery built with MAXTOP high‑performance grids is stronger, more durable, and works with better conductivity — ensuring reliable battery performance.
Cell Layout, Terminal Type & Hold-Down Info
MAXTOP offers multiple cell layouts (0, 1, 3, 4, 5) to match the positive and negative terminal positions of different vehicle models. Terminals are available in two types — STD standard (φ17.6 and φ16) and SM small (φ12.8 and φ11.1), both 17.0 mm in height — to suit different wiring requirements. Hold-down options from B1 to B5 ensure secure, vibration-resistant installation.
Battery Layout, Terminal Type & Hold-Down
MAXTOP offers a wide range of BCI layouts (8, 10, 11, 17, 18, 19, 24, 26, 27), so terminal positions can be adapted to different vehicle models. Terminal options include TM reinforced terminals, STD standard terminals and SIDE side terminals to suit various wiring needs. Hold-down options from B1 to B5 ensure a secure, vibration-resistant installation.
