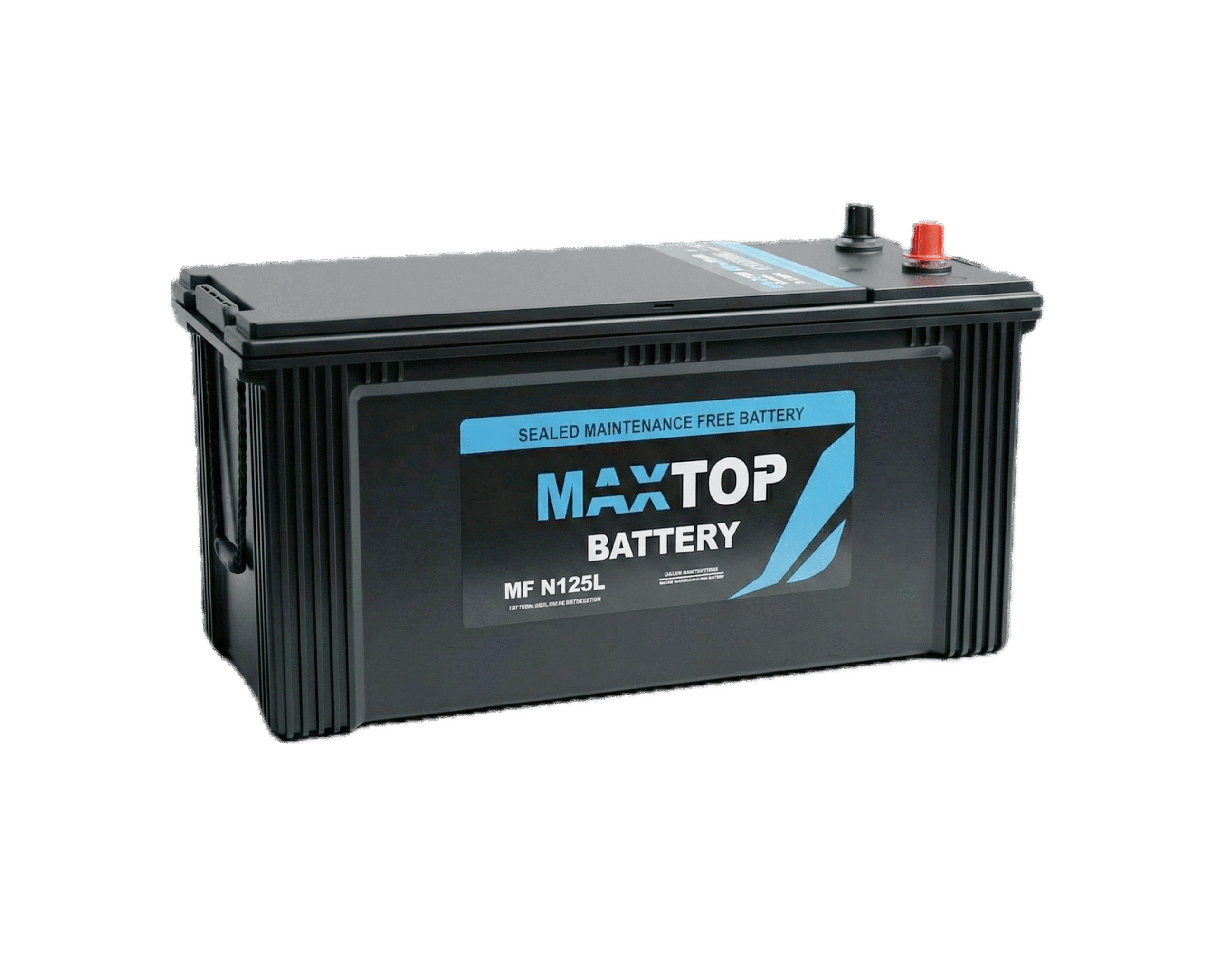

MAXTOP MF N125 (JAPAN JIS STANDARDS 12V 125AH TRUCK BATTERY)
MAXTOP MF N125 battery (typically 12V, approx. 125Ah) is a JIS (Japanese Industrial Standard) battery. It is effectively a high-capacity version of the standard N120 battery.
It sits in the “Medium-Heavy” duty class—more powerful than the N100 used in light trucks, but smaller than the N150 used in massive prime movers. It is primarily used in Asian medium-to-heavy commercial vehicles.
MAIN INDEX FOR MF N125L (JAPAN JIS STANDARDS)
| ITEM# | MF N125L (JAPAN JIS STANDARDS) |
| Capacity | 125Ah (20hr) |
| Dimensions(mm) | 508mm (L) x 179mm (W) x 237mm (H) |
| Warranty | 36 months warranty |
| Voltage | 12V |
| RC (Reserve Capacity) | 245min |
| CCA (Cold Cranking Amps ) | 860A |
| Main vehicle types for N125 | 1. Medium-Heavy Duty Trucks (Asian Brands) This is the most common application. It fits trucks that carry payloads between 8 to 15 tons.Isuzu: F-Series / Forward (Medium-heavy cargo trucks). Hino: 500 Series / Ranger (Standard cargo and dump versions). Mitsubishi Fuso: Fighter (Medium-duty/FK/FM series). UD Trucks: Condor (Medium-duty trucks). Notes: These trucks often come standard with N100 or N120 batteries; the N125 is a popular upgrade for colder climates or vehicles with extra electrical accessories (tail lifts, sleepers).2. Buses and Coaches Suitable for mid-sized buses and city public transport.City Buses: Non-articulated city buses (e.g., Isuzu Erga, Hino Blue Ribbon – older models). Tour Buses: Mid-sized tourist coaches (30-45 seats). School Buses: Large Asian-spec school buses. |
something to know
IMPORTANT TERMS ABOUT BATTERIES
For more details, pls contact us via email: sales@maxtopbatteries.com or 7*24 whatsapp: +86 183 6429 4132, thx.
What is Maintenance Free (MF) battery?
Maintenance Free batteries come sealed for life from the factory, and do not require maintenance of the electrolyte levels. The most significant benefit of the sealed design is that no service attention is required, other than ensuring the battery is kept clean and fully charged
What is JIS type battery?
JIS (Japanese Industrial Standard)
Mainly Applicable Vehicles: Japanese cars (Toyota, Honda, Nissan), Korean cars (Hyundai, Kia), and most Asian brand vehicles.
Appearance Features (Most obvious difference): Raised Terminals. The positive and negative terminals of JIS batteries protrude clearly above the flat top surface of the battery.
Naming Convention Examples: 55D23L, N70, NX120-7, etc. The letters represent width and height, while the numbers represent length or performance level.
What is DIN type battery?
DIN (Deutsches Institut für Normung) – European Standard
Mainly Applicable Vehicles: German cars (VW, Mercedes, BMW, Audi), European cars (Peugeot, Volvo), and an increasing number of American and globalized vehicle models.
Appearance Features (Most obvious difference): Recessed Terminals. The positive and negative terminals of DIN batteries are “hidden” in grooves on the top of the battery, sitting flush with the battery lid (designed to adapt to the compact hood space of European cars and prevent terminal short-circuiting). In addition, DIN batteries usually have a hold-down lip at the bottom for chassis clamp mounting.
Naming Convention Examples: DIN70, MF57412, L3, H6, etc.
Internal Structure of the MAXTOP Battery
MAXTOP batteries use high‑performance grids with 4B alloy additives for better conductivity and lower self‑discharge and water loss. Two‑side pasting improves the plates’ corrosion resistance and initial capacity. The imported pocket PE separator prevents short circuits caused by active‑material drop‑off while lowering internal resistance and boosting cranking power. Advanced inter‑cell welding keeps connection resistance low. Acid‑proof material and a burst‑separation patch effectively isolate external sparks. The labyrinth‑style reflux cover lets electrolyte flow back to reduce water loss, and the reinforced case and cover add strength and durability.
MAXTOP BATTERIES HI-PERFORMANCE GRID & OPTIMIZED PLATES
MAXTOP high‑performance grids deliver up to 32% more durability under extreme conditions than other grid designs, and up to 35% better conductivity than other grid technologies. A car battery built with MAXTOP high‑performance grids is stronger, more durable, and works with better conductivity — ensuring reliable battery performance.
Cell Layout, Terminal Type & Hold-Down Info
MAXTOP offers multiple cell layouts (0, 1, 3, 4, 5) to match the positive and negative terminal positions of different vehicle models. Terminals are available in two types — STD standard (φ17.6 and φ16) and SM small (φ12.8 and φ11.1), both 17.0 mm in height — to suit different wiring requirements. Hold-down options from B1 to B5 ensure secure, vibration-resistant installation.
Battery Layout, Terminal Type & Hold-Down
MAXTOP offers a wide range of BCI layouts (8, 10, 11, 17, 18, 19, 24, 26, 27), so terminal positions can be adapted to different vehicle models. Terminal options include TM reinforced terminals, STD standard terminals and SIDE side terminals to suit various wiring needs. Hold-down options from B1 to B5 ensure a secure, vibration-resistant installation.
